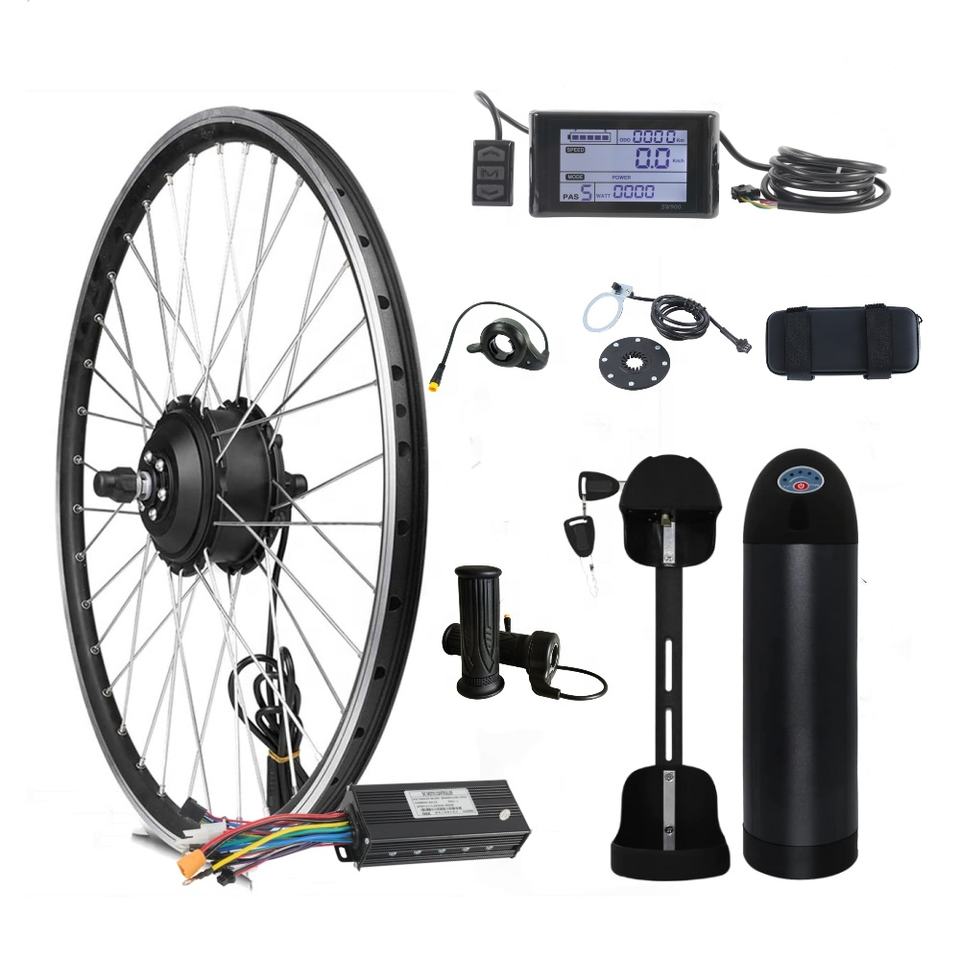

Bicycle motor kit with battery

Description

Battery Position

Detailed Images

Design
Brushless gearless
Power
250w
Speed
25km/h
Torque
19N.m
Weight
2.7kg
Efficiency
>88%
placement
front/rear
Wheel size
20-29 inch
Drop out width
100mm/135mm
36V/48V ebike brushless controller
1) Spec.: 36v-15Amp.
2) Size: L81mm*W50mm*H36mm
3) Functions: Low Brake, Display, Throttle, Curise, Temperature sensor, lock, 25KPH limited, Pedal Assist Sesor. With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage,speed, lack of phase and so on.
4) Optional Function: Front Light With Horn,

LCD S830 DISPLAY

1. It allows the user to edit controller parameters to control all functions on your EBIKE, from speed to wheel size, and even an
external Head lamp.
2.USB port,fashion and convenient,can charge your mobil phone.
3.Vertical display,easy to set and turn on/off.

Thumb throttle,long cables

Wuxing brand brake levers

8 magnets pedal assist sensor
The packing list of 48v 1000w electrric bike kit :
1× 250w brushless geared hub motor(front or rear)
1× 20-29 inch Double-wall Aluminum rim with 12G spokes assembled
1× 15A smart controller
1× Thumb throttle/twist throttle
1× Pair Electric brake levers
1× 1:1 8 magnet intelligent pedal assistant
1x LCD display
1x Waterproof system
1x User installation manual

Packing & Delivery
